Friction bearings and Antifriction bearings are two primary types of bearings used in mechanical systems to support rotating or moving parts, but they operate on different principles regarding friction management. A bearing is a mechanical component that reduces friction between moving parts, allowing smooth rotation or linear motion. It supports shafts, axles, or other elements by minimizing wear, heat, and energy loss, enhancing efficiency and performance in machinery. How many types of bearing?
Friction bearings also known as plain bearings or sliding bearings—function by allowing one component to slide over the surface of another. The load is distributed across a larger surface area, and the motion involves direct contact between the moving parts, resulting in friction.
To reduce the wear and heat generated by this friction, lubrication (such as grease or oil) is applied between the surfaces. Despite the use of lubrication, friction bearings experience more resistance to motion compared to antifriction bearings. How many types of bearing?
Antifriction bearings are specifically designed to minimize friction by using rolling elements (such as balls, rollers, or needles) that roll between two races or rings. Unlike friction bearings, the rolling elements prevent direct sliding contact, significantly reducing resistance to motion.
This leads to smoother and more efficient operation, especially in high-speed applications. Antifriction bearings are ideal for scenarios requiring high precision and lower energy consumption. Also read efficiency of IC Engine
Detail classification of Bearings.
Here’s a rephrased version of the overview on different types of bearings, ensuring originality:

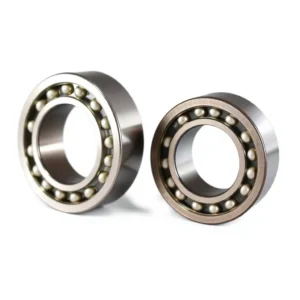

1. Ball Bearings: A ball bearing is a mechanical component designed to reduce friction and facilitate smooth movement between rotating or moving parts. It consists of small, hardened steel balls positioned between two concentric rings, called races.
These balls roll with minimal resistance, allowing for efficient motion while supporting radial and axial loads. Ball bearings are commonly used in machinery, automotive systems, and industrial equipment, where smooth rotation and reduced wear are critical for performance and longevity.
2. Roller Bearings: A roller bearing is a mechanical device designed to minimize friction between rotating components. It features cylindrical rollers positioned between two rings, allowing for smooth rotation while carrying radial and axial loads.
The rollers move between an inner and outer ring, reducing friction and wear. Roller bearings are widely used in industries like automotive and manufacturing, providing durability and improved efficiency in machinery by supporting heavy loads with minimal resistance. How many types of bearing?
3. Needle Bearings: Needle bearings are a type of roller bearing featuring long, thin cylindrical rollers, which resemble needles. They distribute loads over a larger area, reducing friction between moving parts.
Compact and lightweight, they are ideal for applications with limited space, such as automotive transmissions, gears, and industrial machinery, where high load capacity and precision are essential.
4. Thrust Bearings: A thrust bearing is a specialized type of bearing that supports axial forces, or loads applied along the axis of a rotating shaft. Unlike radial bearings, which manage forces perpendicular to the shaft, thrust bearings are designed to handle axial loads, ensuring smooth rotation under these conditions.
These bearings are often used in applications like automotive, marine, and aerospace systems. Different types, such as ball or roller thrust bearings, are selected based on load requirements and desired performance, helping to reduce friction and wear in the system.
5. Fluid Bearings: A fluid bearing is a type of bearing that supports a load using a thin layer of fluid, typically oil or air, to reduce friction between moving parts. The fluid layer is maintained through hydrodynamic or hydrostatic pressure, allowing the bearing surfaces to remain separated.
This design minimizes wear, reduces vibration, and enables high-speed or heavy-load applications, such as in turbines or compressors. Fluid bearings are advantageous for their low friction and long life, especially in environments where conventional contact bearings would fail.
6. Magnetic Bearings: A magnetic bearing is a type of bearing that uses magnetic fields to support a rotating object without physical contact. It reduces friction by suspending the shaft in a magnetic field, allowing it to rotate freely.
Magnetic bearings are often used in high-speed applications like turbines, motors, and generators due to their ability to operate without lubrication and withstand extreme conditions. They provide high precision, reduced wear, and improved efficiency, making them ideal for sensitive or high-performance machinery where conventional bearings may fail.
7. Sleeve Bearings: A sleeve bearing, also known as a plain bearing, is a simple type of bearing that consists of a cylindrical shaft rotating within a smooth sleeve or bushing. It provides support for rotational or sliding motion between two parts by reducing friction.
Sleeve bearings are commonly used in machinery due to their low cost, ease of maintenance, and ability to handle moderate loads. They are often made from materials like bronze, plastic, or composite materials and rely on lubrication to minimize wear and ensure smooth operation.
Some basic formulas of Bearings.
Here are five commonly used formulas related to bearings:
1. Basic Dynamic Load Rating (C)
\[
L_{10} = \left(\frac{C}{P}\right)^3 \times 10^6
\]Where:
– \( L_{10} \) = bearing life (in revolutions)
– \( C \) = basic dynamic load rating (N or lbf)
– \( P \) = equivalent dynamic load on the bearing (N or lbf)
2. Equivalent Dynamic Bearing Load (P)
\[
P = X F_r + Y F_a
\]Where:
– \( P \) = equivalent dynamic load (N or lbf)
– \( F_r \) = radial load (N or lbf)
– \( F_a \) = axial load (N or lbf)
– \( X \) and \( Y \) = load factors based on the bearing type and load direction
3. Bearing Life in Hours
\[
L_h = \frac{L_{10}}{60 \times n}
\]Where:
– \( L_h \) = bearing life (hours)
– \( L_{10} \) = bearing life (in revolutions)
– \( n \) = rotational speed (RPM)
4. Fatigue Load Limit (Cu)
\[
\sigma_f = \frac{P}{A}
\]Where:
– \( \sigma_f \) = fatigue stress (N/m² or psi)
– \( P \) = applied load (N or lbf)
– \( A \) = cross-sectional area (m² or in²)
5. Lubrication Factor (κ)
\[
κ = \frac{\nu}{\nu_1}
\]Where:
– \( \kappa \) = lubrication factor
– \( \nu \) = actual kinematic viscosity of lubricant (mm²/s)
– \( \nu_1 \) = required kinematic viscosity for the bearing (mm²/s)
These formulas are widely used in bearing analysis to assess bearing life, load capacity, and performance.
Caused of bearing failure
Bearing failure can occur for several reasons, and understanding these causes is crucial for preventing mechanical breakdowns.
Also read what is fluid coupling
Improper lubrication. Bearings require the correct type and amount of lubricant to reduce friction and heat. If lubrication is insufficient, contaminated, or the wrong type, it leads to excessive wear and eventual failure. How many types of bearing?
Overloading is another major cause of bearing failure. When a bearing is subjected to loads higher than its designed capacity, the increased stress leads to deformation of the bearing surfaces, resulting in premature failure. Similarly, **misalignment** of the bearing with respect to its shaft or housing causes uneven distribution of load, which accelerates wear and can cause the bearing to seize or break.
Contamination is also a common issue. Dirt, debris, or moisture can enter the bearing housing, causing abrasive wear and corrosion. Contaminants can also compromise the lubricant, making it less effective in reducing friction and wear.
Vibration and excessive heat are other factors. Vibration can lead to metal fatigue and surface damage, while excessive heat can cause lubricant breakdown or thermal expansion, affecting bearing performance. How many types of bearing?
Improper handling or installation can damage bearings before they even begin to operate. Incorrect installation techniques, such as using the wrong tools or applying excessive force, can distort bearing components, leading to early failure. Regular maintenance and adherence to correct handling procedures are key to extending bearing life.
Some FAQs related with Bearings
Here are five more FAQs related to bearings: Also read what is pump?
1. What is bearing clearance, and why is it important?
Bearing clearance refers to the space between the inner and outer rings of a bearing when installed. Proper clearance ensures that the bearing can operate efficiently under different conditions, such as temperature changes and load variations. Insufficient or excessive clearance can lead to bearing failure or decreased performance.
2. What is the difference between sealed and open bearings?
Sealed bearings have protective shields or seals to keep out contaminants like dust and moisture, reducing the need for frequent lubrication. Open bearings, on the other hand, do not have seals and require external lubrication but allow for higher speeds due to less friction.
3. How do I know when a bearing needs to be replaced?
Signs of a failing bearing include unusual noise, increased vibration, excessive heat, or visible wear on the bearing surfaces. If these symptoms are noticed, the bearing should be inspected and replaced to avoid further damage to the machine.
4. What materials are bearings made from?
Bearings are typically made from high-quality steel, ceramic, or plastic. Steel bearings are the most common and offer durability and strength. Ceramic bearings are lighter, more resistant to corrosion, and can operate at higher speeds, while plastic bearings are used in low-load, low-speed applications. How many types of bearing?
5. Can bearings be reused?
While some bearings can be cleaned, lubricated, and reused, it’s generally advisable to replace them if they show signs of wear or damage. Reusing worn bearings can lead to premature failure and equipment damage.
